Engineered for Wet & Heavy-Duty Operations
CALCIUM SULFONATE COMPLEX GREASE – Extreme Load Protection, Superior Water Resistance & Long-Lasting Lubrication
PAL CSGS Grease is a high-performance calcium sulfonate complex grease offering exceptional shear stability, superior water resistance, inherent extreme-pressure performance and long-lasting lubrication for industrial equipment operating in wet and demanding environments.
Why Pal CSGS Grease?
HEAT: Non-melting up to 500C
RESIST: Oxidation and corrosion resistant
SHOCK: High shock load absorption
CHEM: Works in hostile chemical environments
Built For These Applications

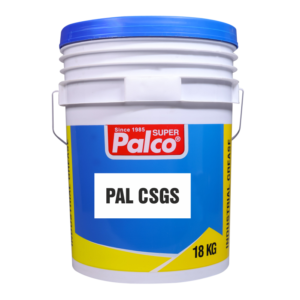

Pal CSGS Grease
Download Technical Datasheet (PDF)
Products Description
PAL CSGS GREASE is a highly shear stable, extremely water resistance Calcium sulfonate complex thickener with having inherent extreme load carrying capacity and rust protection characteristic in dry as well as wet environment. It is specially designed to provide extended relubrication intervals. It provides strong long lasting boundary lubrication film due to its unique crystalline structure. It resists emulsification due water ingress keeping its structural and load carrying properties intact. It is suitable for use in all type of anti- friction bearing including plain bearing. It does not get reverse harden on storage.
Product Features
- Inherent extreme load carrying capacity
- Excellent water washout and spray off resistance.
- Improved saltwater rust protection
- Outstanding thermal and mechanical stability.
- Good pumpability.
Applications
- Spindles, CV joints, Universal joints.
- Agricultural, Constructions, Cement and mining industry.
- Marine and offshore application.
- Wire ropes.
- Wet and Dry end bearings.
Packing
180KG, 18KG, 1KG
Characteristics
| S.NO. | PROPERTIES | TEST METHOD | PAL CSGS |
|---|---|---|---|
| 1. | Appearance | Visual | Brown |
| 2. | NLGI Grade | DIN 51818 | 2 |
| 3. | Worked Penetration (60 X) | ASTM D 217 | 280 |
| 4. | Drop Point, °C, min. | ASTM D 2265 | + 300 |
| 5. | Mechanical Stability 100k Strokes @ 25®C | ASTM D 217 | +17 |
| 6. | Water washout, 80®C | ASTM 1264 | >3% |
| 7. | Base Oil Viscosity @ 40°C, cSt | ASTM D 445 | 180-220 |
| 8. | Four ball weld Load, Kg | ASTM D 2596 | 620 |
| 9. | Thickeners Type | Calcium Sulfonate Complex |
*The specifications are subject to variations/development/customization.
