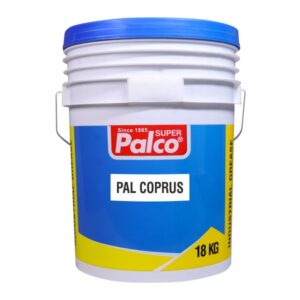

PAL COPRUS GREASE
PAL COPRUS is a copper-based anti-seize paste designed to prevent seizure and ensure smooth assembly of static fasteners, even in extreme and wet conditions, including seawater exposure.
Products Description
PAL COPRUS is a copper-based anti-seize paste formulated for use on all static fasteners and mechanisms susceptible to seizure. This high-performance compound serves as an ideal assembly and anti-seize lubricant in extreme adverse conditions where pick-up and seizure issues are likely to occur. It is particularly well-suited for demanding wet environments, including applications involving submersion in seawater.
Features
- Exceptional Temperature Range: Performs reliably from –20°C to +1100°C for outstanding static operating temperature resistance.
- Non-Melting Formula: Utilizes an inorganic thickener to ensure the compound stays in place without melting.
- Seizure Prevention: Effectively prevents pick-up and seizure of static threaded fasteners.
- Simplified Maintenance: Lubricates and protects components while easing dismantling.
- Aggressive Environment Protection: Performs effectively even in harsh conditions, with complete insolubility in water.
Applications
For Bolted joints that are subjected to high temperatures up to 1100°C (2000°F) and to corrosive effects, and which, after assembling and the initial operation, have to be re-tightened or disconnected. In order to ensure constant pre-stressing forces, uniform and steady coefficients of friction of the lubricant are necessary. Used successfully for cylinder head bolts, nozzle head screws of plastic, Furnaces, Exhaust system, Dockside and Oil rig applications. Injection molding machines, bolted joints in the chemical industry, tension rings of centrifuges.
Packing
180KG, 18KG, 1KG
Characteristics
| S. NO. | PROPERTIES | TEST METHOD | PAL COPRUS |
|---|---|---|---|
| 1. | Appearance | Visual | Reddish Copper Paste |
| 2. | NLGI Grade | DIN 51818 | 1 |
| 3. | Temperature Range | – | -20°C to 1100°C |
| 4. | Worked Penetration (60 X) | ASTM D 217 | 310–340 |
| 5. | Melting Point, °C, min. | – | No Melt |
| 6. | Water Solubility | – | Insoluble |
| 7. | Water Washout, 80°C | ASTM 1264 | < 1% |
| 8. | Solid Lubricants | – | Copper Flakes, MoS2 |
| 9. | Thickeners Type | – | Inorganic Thickener |
| 10. | Press Fit Test (μ) (Coefficient of Friction) | – | 0.07 |
*The specifications are subject to variations/development/customization.
